JOHN DEERE | 6 6M / 6MC – 6R / 6RC

6M / 6MC - 6R / 6RC

JOHN DEERE

6

All the front hitches on this page are equipped with :

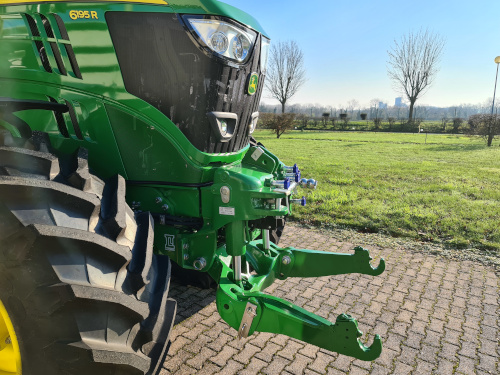

FRONT HITCH Choice

    PR5.5

    Lift capacity 5500 kg
    Characteristics

    DEMANDING APPLICATIONS /OFFSET LOAD
    → For demanding applications : plough, dozer blade, chisel plough, subsoiler, offset load, etc.

    Front hitch equipped with :
    – Cat 3 hooks
    – Top link with storage position
    – Isolating valve with single or double acting mode selection
    – Parallel foldable arms with locked or floating mode

    ST3

    Lift capacity 3000 kg
    Characteristics

    COMMON APPLICATIONS /CENTERED LOAD
    → For standard applications : mower, hopper, ballast, etc.

    Front hitch equipped with :
    – Tow hook
    – Cat 3 hooks
    – Top link with storage position
    – Parallel foldable arms with locked or floating mode

    ST3.8C

    Lift capacity 3800 kg
    Characteristics

    COMMON APPLICATIONS /CENTERED LOAD
    → For standard applications : mower, hopper, ballast, etc.

    Front hitch equipped with :
    – Tow hook
    – Cat 3 hooks
    – Top link with storage position
    – Parallel foldable arms with locked or floating mode

    FRONT PTO Choice

      Direction of rotation Clockwise (when looking at the shaft)
      Rotation speed 1000 rpm
      Splines 21
      Puissance moteur 180 HP
      Direction of rotation Clockwise (when looking at the shaft)
      Rotation speed 540 rpm
      Splines 6
      Puissance moteur 90 HP
      Direction of rotation Counter Clockwise (when looking at the shaft)
      Rotation speed 1000 rpm
      Splines 6
      Puissance moteur 170 HP
      Options for this model

      Front hydraulic receptacles
      Harness for front electric connection
      Hitch dampening kit
      Hooks for mower chains
      Parallel connections to rear SCV
      Remote switch kit
      Return line for hydraulic motor
      Weight frame
