Subsoilers

LAFORGE tine : a unique and durable agronomic performance.
She has superior agronomic qualities to other tines on the market.
These qualities were recognized by the Gembloux Institute during comparative tests.

LAFORGE construction advantages

  Agronomy

– Symmetrical wings for efficient shattering and minimum surface disturbance, even in wet conditions
– Maintenance of the superficial horizon
– Long and thin sharpening: Penetration in favored soil. Especially appreciated in difficult terrain or dry conditions
– Vertical homogeneity of the soil: No disruption of the horizons – Respect of the soil structure
– No formation of hollow areas: optimal root development
– Optimum porosity: Prevents soil asphyxiation and sole formation – Favored water circulation with capillary rise in case of drought and easy drainage in case of heavy rains

Excellent penetration: Self-sharpening points

Easily interchangeable: points with elastic pin bolts for reduced down time

Reversible lower: shin for increased life

Reliability: shearing bolt mounted with heat treated bushing for improved reliability

 Return stop on tines bracket: prevents tines from interfering with tractors tyres when cap screw is sheared

Quality: high tensile steel 25 mm thick

Adaptability:bolt on design

Subsoilers range

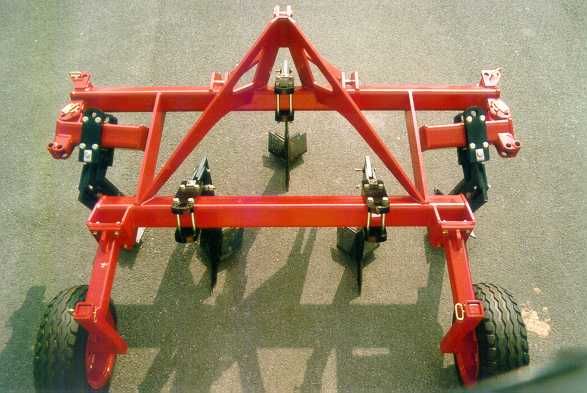

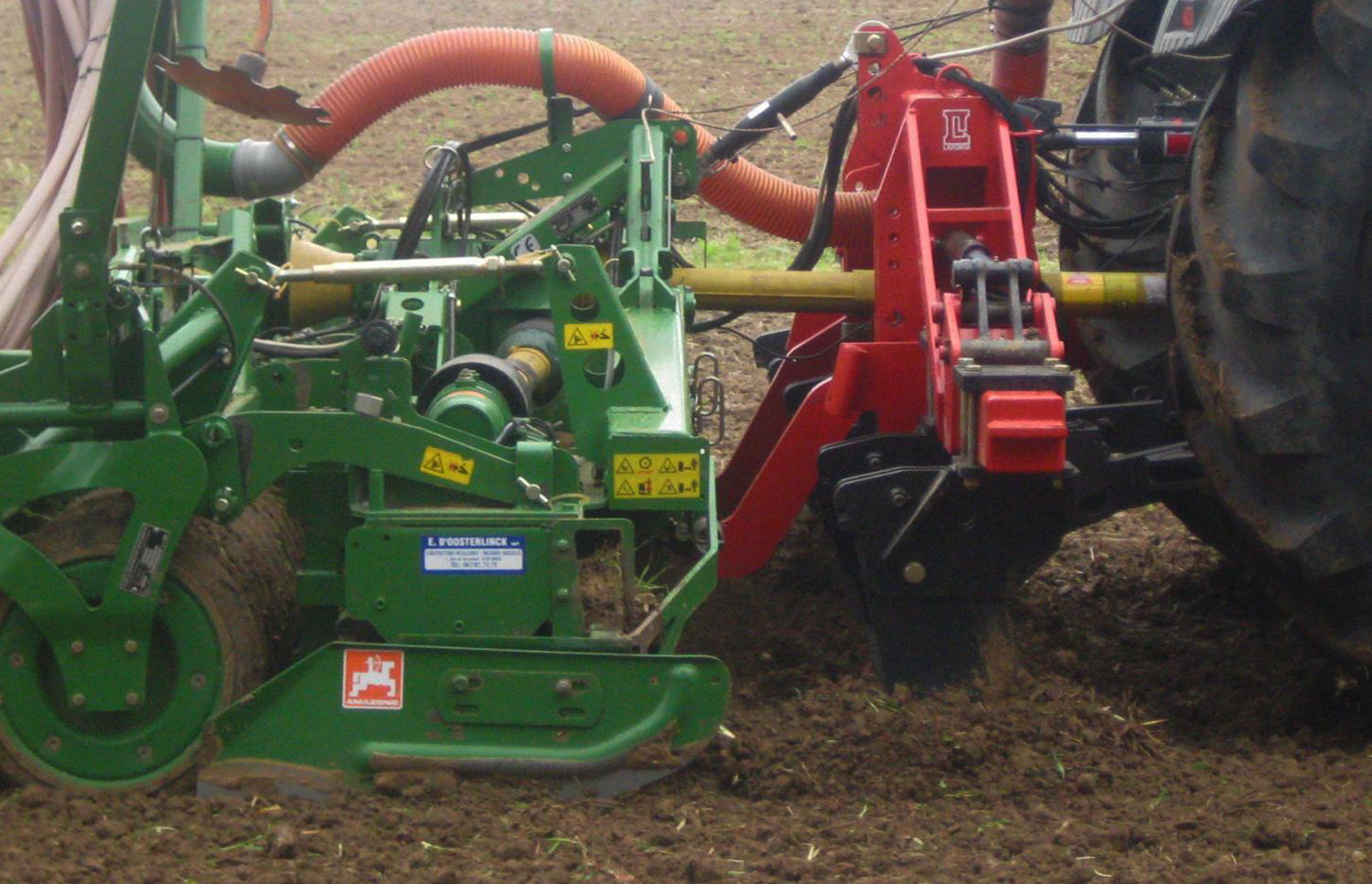

Unipass®

Front subsoiler

UNIPASS is a subsoiler declined in front / rear combination. Its use makes it possible to obtain a uniformly aerated and uncompressed soil.

UNIPASS allowing:
• Optimised tractor dynamic weight distribution
• Combination of heavy equipment while retaining great inter tines clearance
• Installation of disc coulters to cut cleanly through residues while keeping the rear end unit close to the tractor
• Easy folding to 3m width to simplify road travel

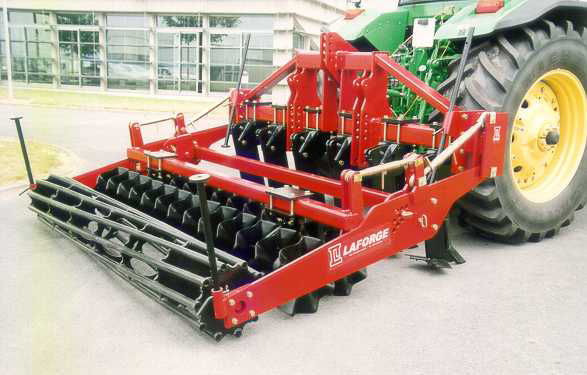

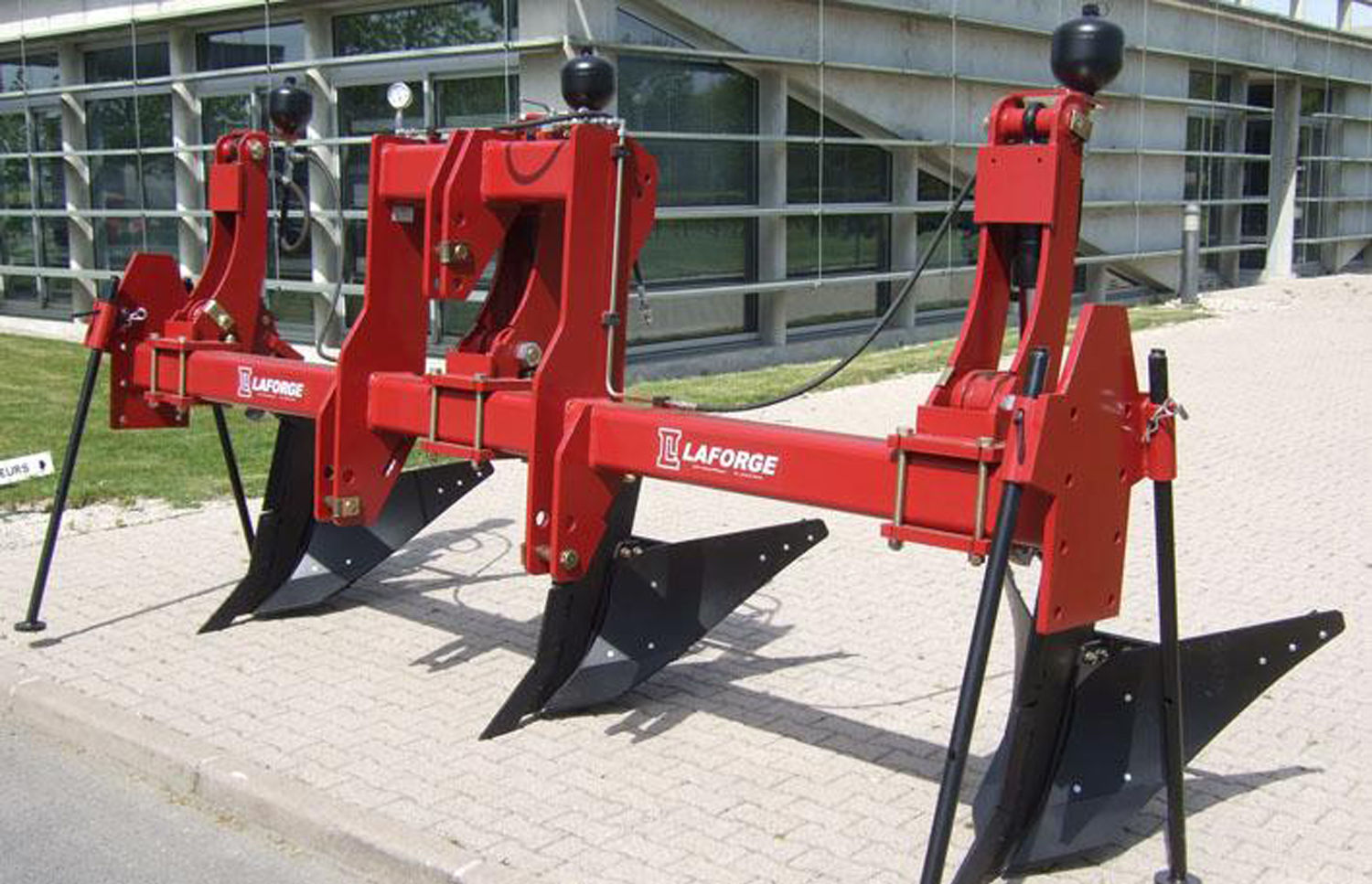

Flexipass®

Rear subsoiler

Flexipass® is a subsoiler designed to be rear attached to the tractor. There are two models: single bar and twin bar.

FLEXIPASS monopoutre : Single bar frame 150 mm with opening to accomodate PTO shaft for powered implements. Sizes: 3m (4 shanks) / 4m (6 shanks)
Multipurpose frame designed to either receive:
• A rear 3 point hitch which folds when lifted to reduce tractor hitch lift capacity requirement
• A rear 3 point hitch with geometry similar to a tractor hitch to ensure stability with high draft implements
• Tow hitch for trailed implement

Twin bar FLEXIPASS : This version is designed to offer increased clerance between shanks to cope with high levels of crop residue.
Sizes: 3m (5 shanks) / 4m (7 shanks)

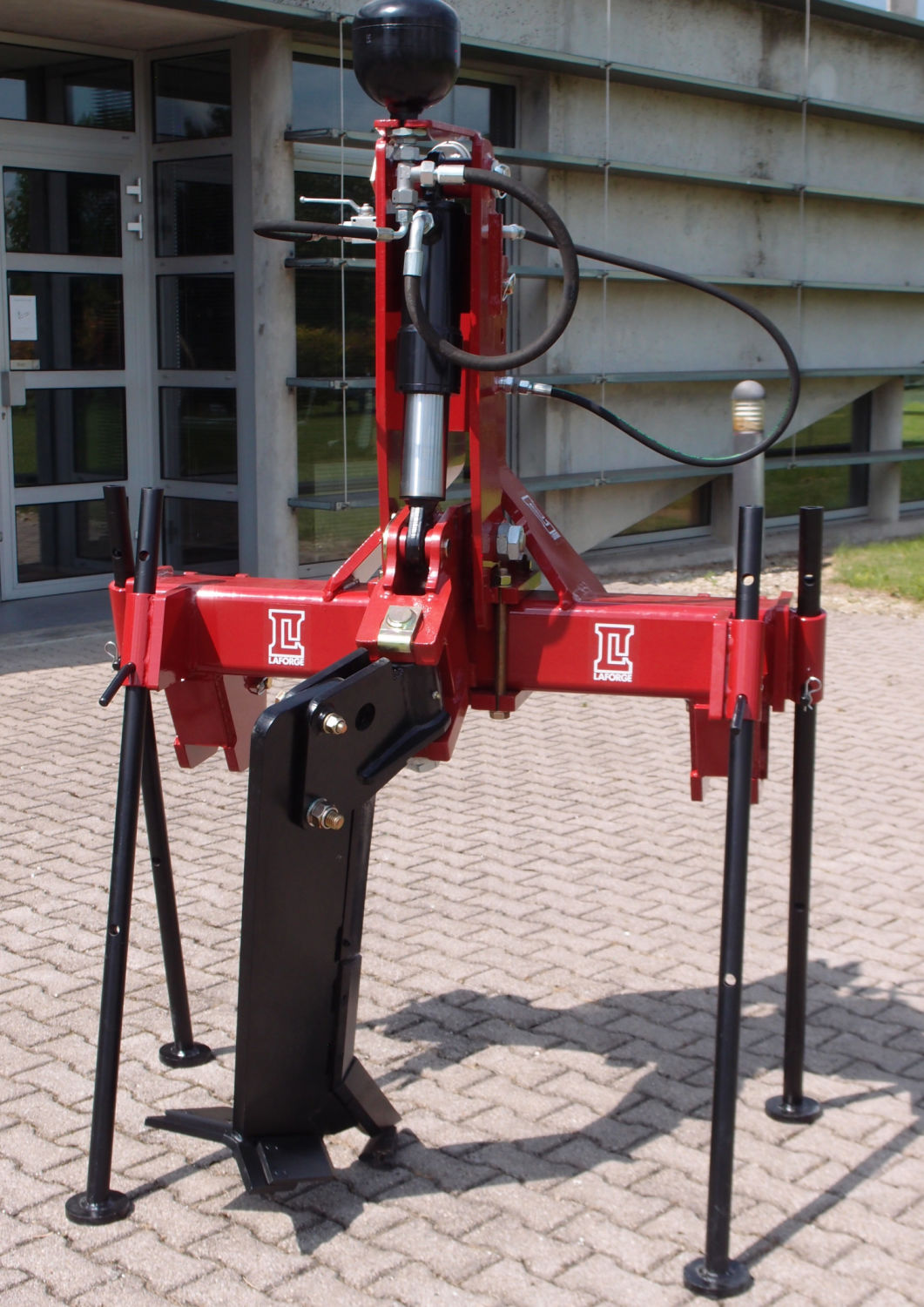

Ameublisseur monodent

Wineyard, forestry

Single bar has been specially designed for your vines and the maintenance of your forest plantations.

• 4-way swivel tine
• Sharpening allowing an easy penetration even in dry ground
• Higher agronomic result thanks to the shape of the tine
• Compact: 1.02m maximum width
• Laforge construction quality
